Automatic design and optimization of an EMI filter using commercially-available components

Azaro, Renzo and Ioriatti, Luca and Martinelli, Mauro and Massa, Andrea (2007) Automatic design and optimization of an EMI filter using commercially-available components. [Technical Report]

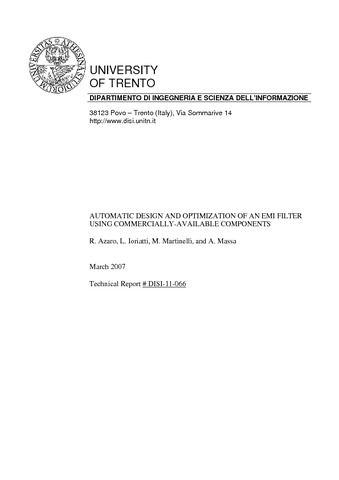

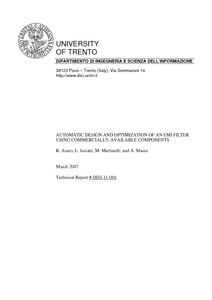

Preview

Text DISI-11-066.pdf Download (376kB) | Preview

Abstract

Designing customized EMI filters is a challenging task since the choice of the circuit topology as well as of the discrete values of the electric components, for satisfying multiple electrical requirements, is not trivial and no-standard guidelines are available. In this letter, an approach based on a particle swarm optimizer, used in conjunction with a circuital simulator, is described. By using equivalent models of commercial components, such a method allows the synthesis of reliable and ready-to-build filters. As an example, a filter prototype is realized and its efficiency assessed through numerical and experimental evaluations. This paper is a postprint of a paper submitted to and accepted for publication in Electronics Letters and is subject to Institution of Engineering and Technology Copyright. The copy of record is available at IET Digital Library.
